RS ULTIMATE

  • Sale
  • Regular price $3,790.00
Shipping calculated at checkout.


Now works with , too!

The Ultimate All-In-One package:
- This kit provides the ultimate 5DOF Motion System in one package
- You build the platforms, we supply the "glue"

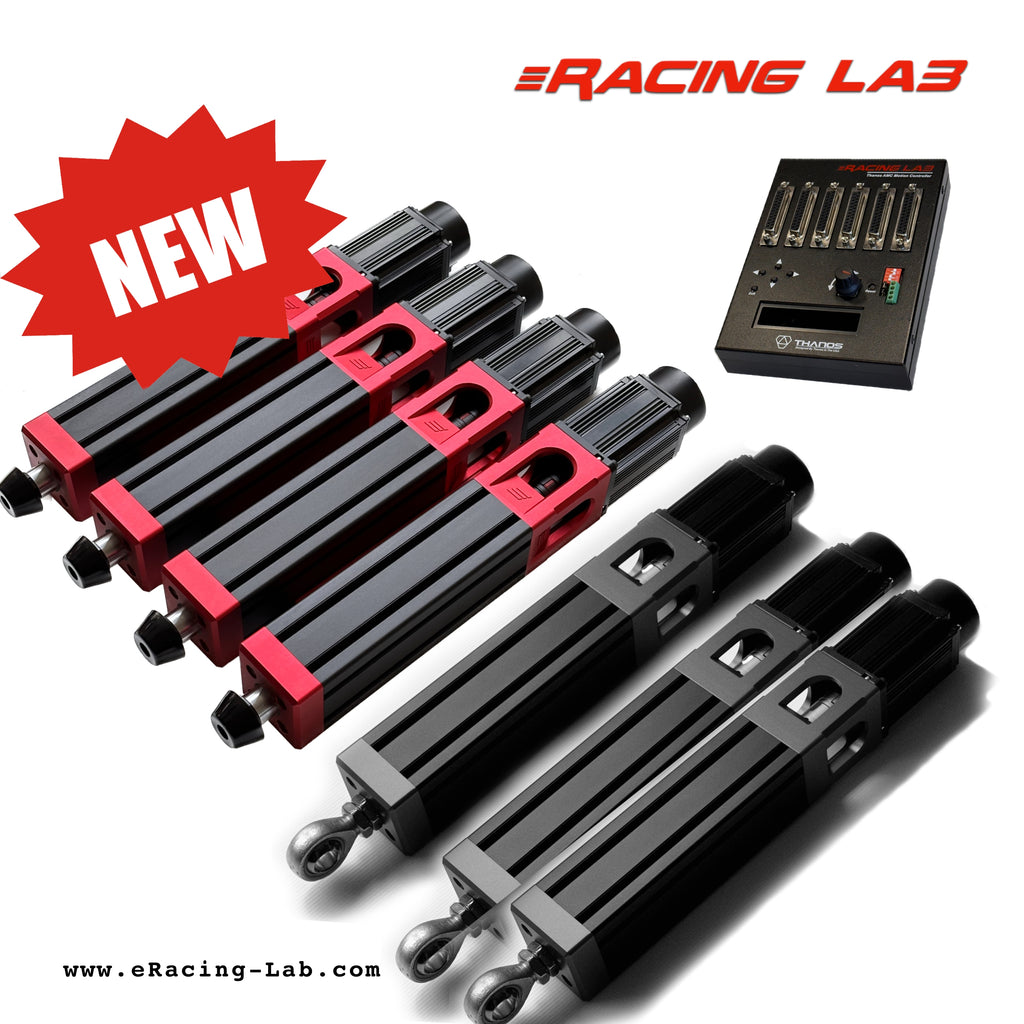

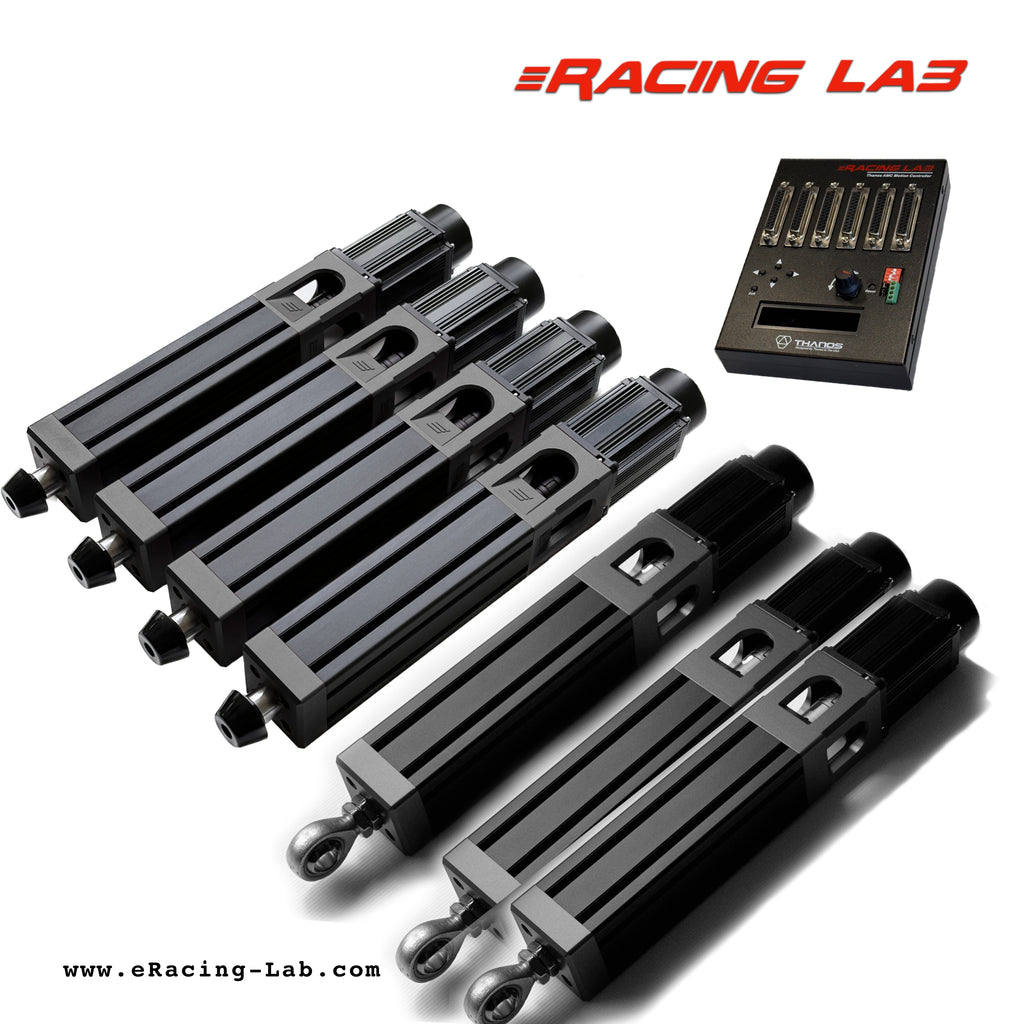

- 1 x RS MEGA+ with Thanos AMC-AASD15A controller
- 1 x RS SOLO - Traction Loss Kit
- 1 x RS SOLO - Surge Kit

Optional
- 1 x RS SOLO - Active Belt Kit (150mm)

(customer's setup)




System Includes:

Main System
- Top of the range Thanos AMC-AASD15A controller
- Supports 7 channels out of the box
- 6 x Actuators 150mm in full Aluminum body
- (4 for vertical, 1 for Traction Loss and 1 for Surge)
- Latest AASD-15A V6.3.1 servo drivers ((fully configured))
- Ultra high quality shielded cables for motors (4 meters)
- All cables are included (USB and power)

(customer's setup)

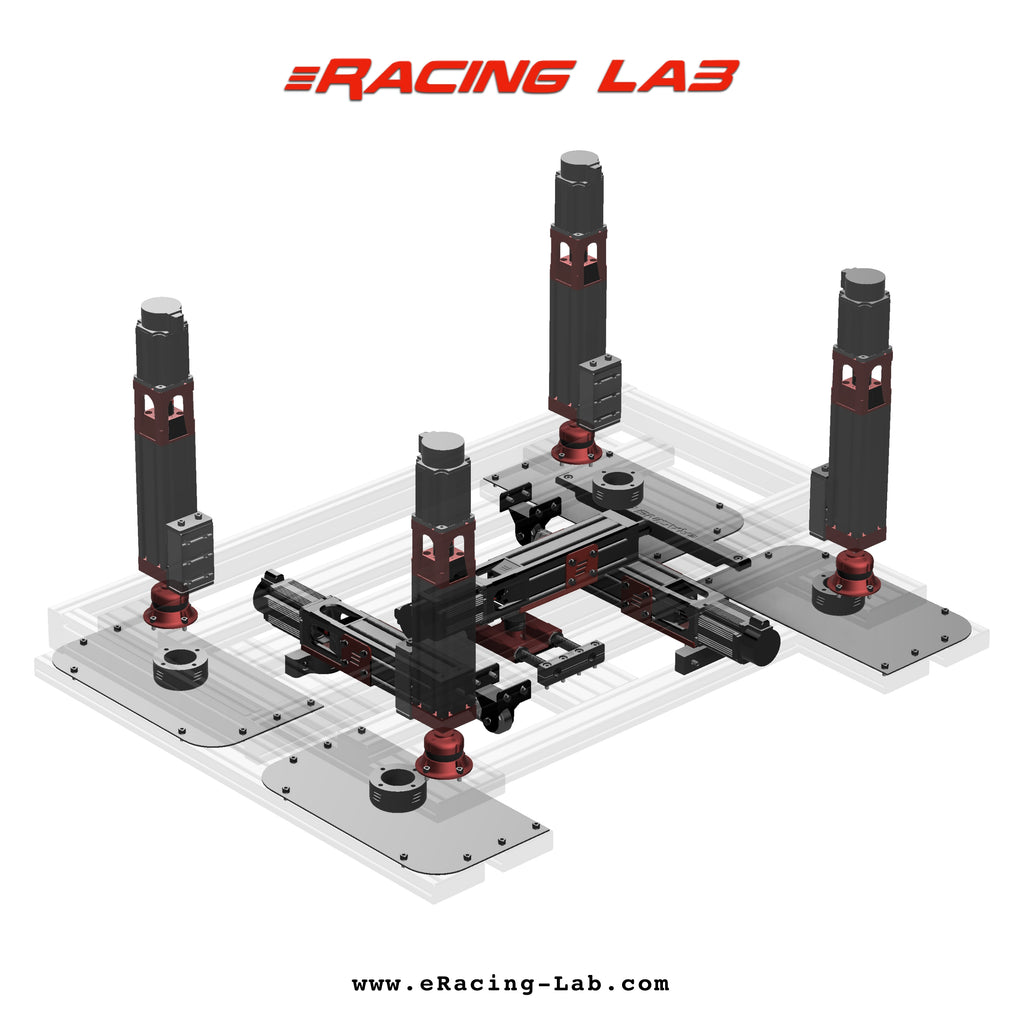

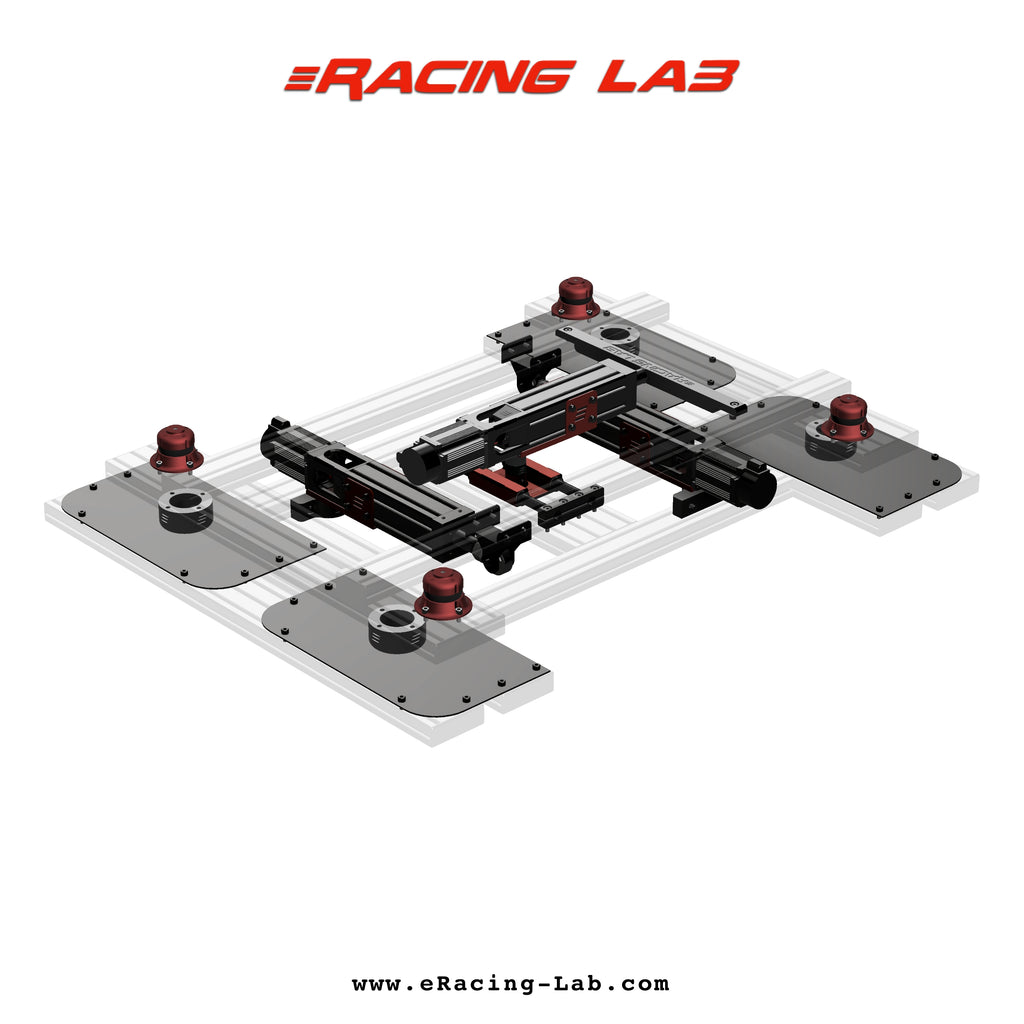

Traction Loss

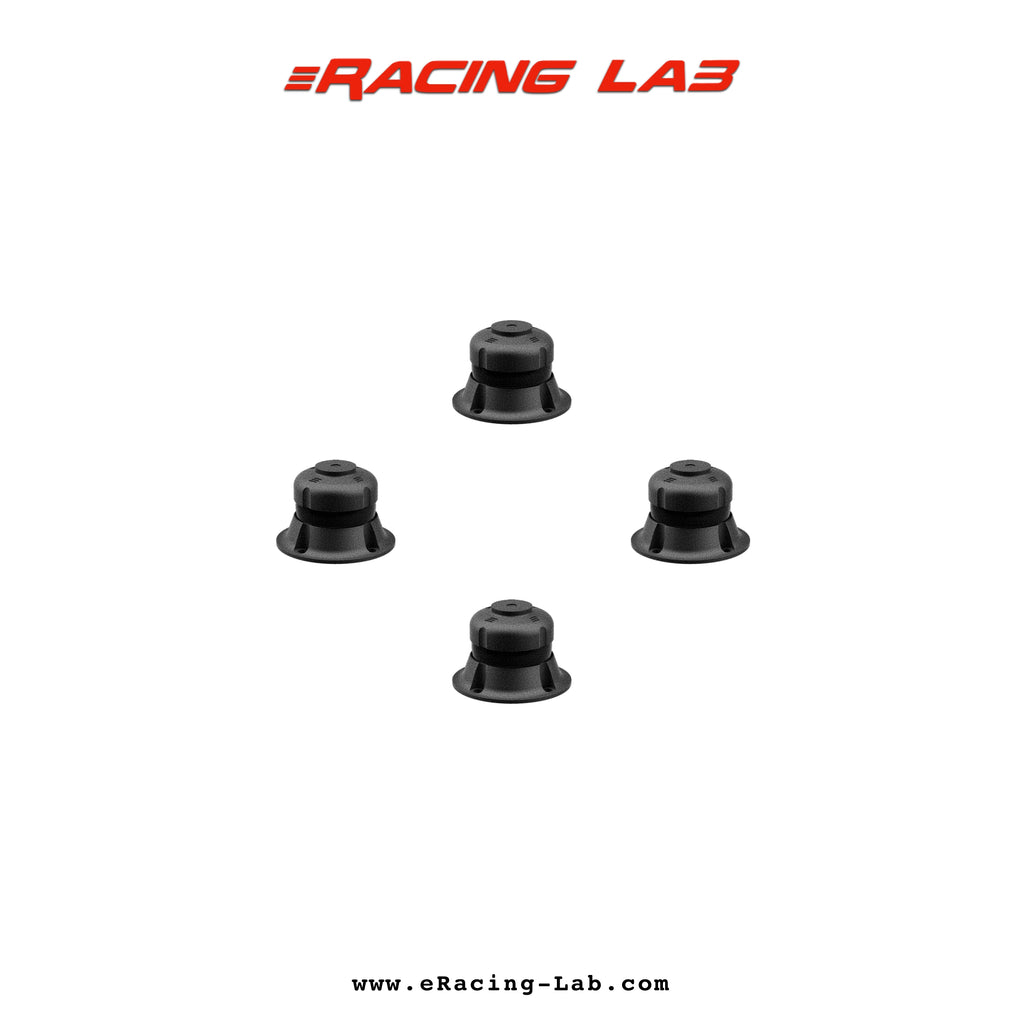

- 4 x Aluminium support cups for vertical actuators
- 4 x Stainless steel casters
- 4 x Aluminium casters rolling / support plates
- 1 x Pivot point bearing assembly
- 1 x pull bar assembly


Surge



- 4 x Stainless steel linear rails (2 front, 2 rear, 580mm each)
- 8 x Linear slider (for 40 series aluminium profile, 2 per rail)
- 1 x Pull bar assembly

Active Belt (optional)



- 1 x Actuators 50mm or 150mm* in full Aluminium body
- 1 x AASD-15A V6.3.1 servo drivers (in white)
- 1 x Roller bar (500mm) for belt to pull directly behind shoulder

- 1 x Pull bar assembly
- 1 x High quality 5-point seat belt (2.5") with "quick buckle")

(customer's setup: 3DOF with Traction Loss and Surge)



Software Compatibility  :
-
- SimRacing Studio

- SimTools
- FlyPT Mover







(customer's setup)


Cockpit Compatibility:
- Sim Lab: P1-X, GT1, GT2, TR1
- Trak Racer: TR160, TR120, TR80
- and all DIY cockpits with a 40 series aluminium base frame

(customer's setup: 3DOF with Traction Loss and Surge)



Specification:
- Stroke: 150mm push and pull
- Speed: 250mm/s
- Servo Motor: 80mm flange, 750w
- Max Load: 180kg per actuator (vertical)
- Horizontal Push / Pull: 80kg
- Voltage: 110-220V
- Three years warranty for actuators


Dimension and Weight:
- 80mm x 80mm x 580mm (per actuator)
- 7.3kg (per actuator)





Check out the awesome setup from our customers around the world.
