Update on Jun 30th: current leadtime to ship = two weeks
Highlights:
- The ultimate performance upgrade kit that takes motion experience and immersion to a whole new level
- Expand and upgrade your existing RS MEGA4U / RS MEGA+ to a full blown 6DOF motion system by adding "Double Traction Loss" (Yaw), Sway and Surge
- Comes with 3 x RS Series actuators (front TL, Rear TL and Surge)
- We supply all essential parts and mounting accessories, while you buy the alumimum profiles locally to save international shipping cost.

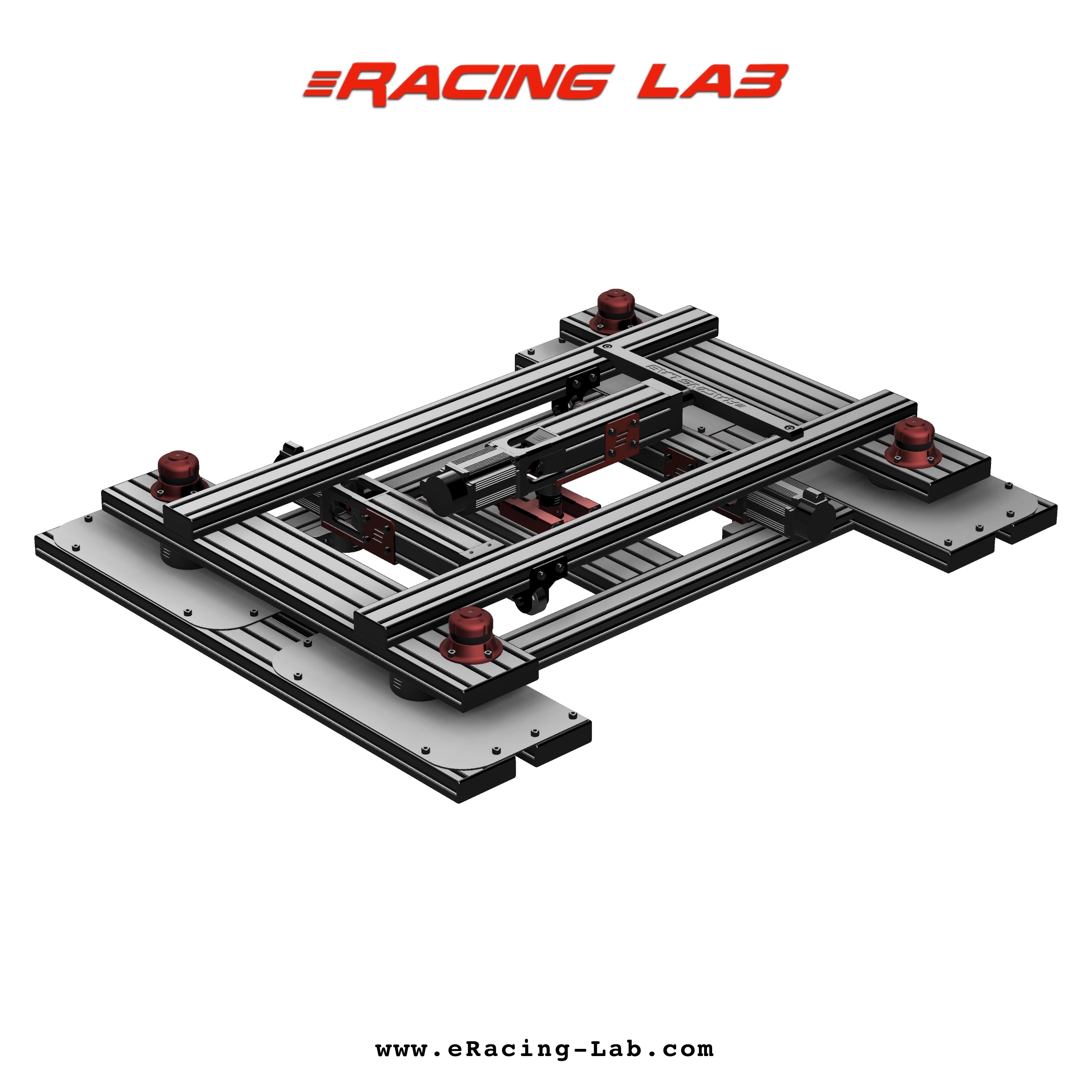

- Detailed schematic of the RS COMPETITION platform, including aluminum profile dimensions, is also provided to facilitate perfect installation.
Initiative and compact platform design
- All three degrees of freedom—Yaw, Sway, and Surge— are integrated into a single platform and discreetly concealed beneath the cockpit
- Elevates vertical actuators by just 13 cm from ground while maintaining the seat position closest to the center of gravity (COG) for best motion experience
- Powered by the robust RS SOLO actuator, this platform delivers lightning-fast short burst of Surge and Sway movement at up to 250mm/s and the best-in-class 20° of Yaw in just 0.4 seconds
- All components are proprietary-designed for perfect fit and manufactured to ensure durability that lasts for years, if not decades
- Completely eliminated the use of any mechanical and metal bearings to achieve the quietest operation and simplest maintenance
- All new suspension system featuring adjustable Hard or Soft settings to minimize vibrations and noise disturbance to your neighbours
- World's first-ever "Slick Tire" for motion platforms, specifically designed with no moving parts to ensure the quietest operations, and engineered to last a lifetime.
What's included:
- 3 x RS Actuators 150mm (operate with 100mm) with motor and driver
- 2 x "Slick Mount" for TL actuators
- 1 x mounting kit for Surge actuators
- 1 x "Slick Pod" for center pivot and lateral movement
- 4 x Suspension with hard / soft damper
- 4 x "Slick Tire with sliding plates
- 4 x Spacer for actuators (40mm, 80x120mm)
"Slick Pod" made from billet aluminium and carbon fibre
Suspension with Hard / Soft setting
Patent pending "Slick Tire" for motion platform
Requirement:
- A 4-actuator motion system such as RS MEGA4U or RS MEGA+, or "SFX100" type
- 3 unused channels on the ThanosAMC controller if upgrading from RS MEGA+
- Distance between Left and Right actuator is between 660mm to 830mm
- Distance between Front and Rear actuator is between 1020mm to 1100mm
- build the platform using 40 series alumimum profiles (not included) as shown below
